CSFMC Products

Chiniot Safety Fuse manufacturing Company is the leading Industrial and Commercial Explosives & its allied Blasting accessories Manufacturer rendering services in Pakistan since 1989.

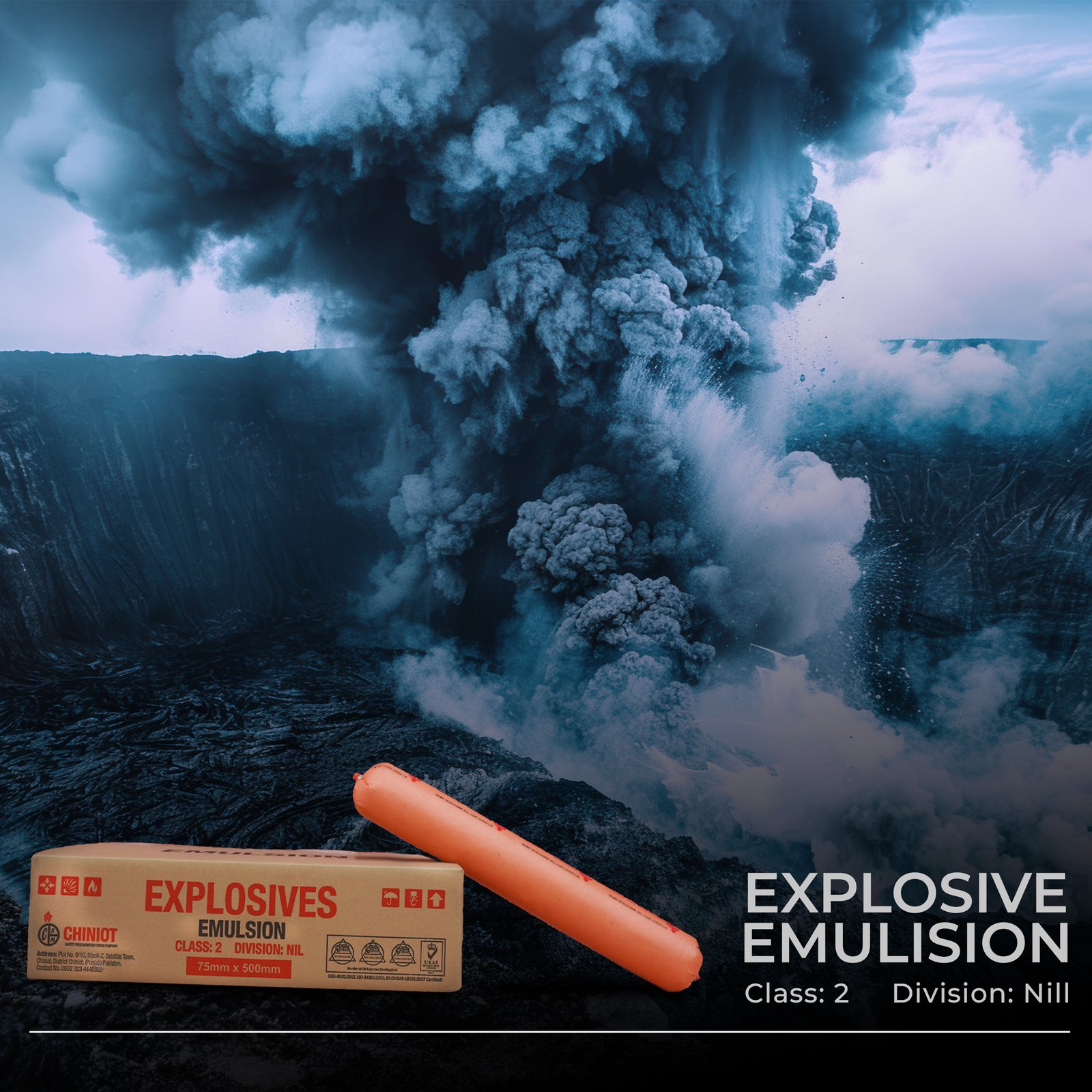

Emulsion Explosive

An Emulsion is the third and latest generation of the commercial explosives in the world. It has excellent performance, characteristics & flexibility in use. An Emulsion explosive is a water-in-oil emulsion consisting of a super-saturated solution of microscopic droplets and it sensitizes with entrapped air in the form of ultra- ne bubbles, dispersed throughout the emulsion which act as sensitizer. An emulsion explosive is a modern
technique of art in explosive’s family. It contains no raw material, which can be classified as explosive. Emulsion becomes explosive only in the final stage of its production. It is therefore safer to manufacture and handle than any other commercial explosives. This is relatively insensitive to accidental initiation by shock, friction or mechanical impact under normal conditions. Emulsion explosives are being used in soft medium and hard rocks, it is very suitable for tunnels & gassy mines etc. CSFMC has the pride in producing best quality Emulsion Explosive in the country which can be displayed in any trial.

Detail

Specification

Physical Appearance

Beige Color, fine powder form, homogeneous mixture.

Density

1.16 – 1.25 g/cc

Lead Block Expansion

300ml

VOD

3500 - 5500 m/s

Water Resistance

Excellent

Gap Sensitivity

50 – 100mm

Initiation Sensitivity

No.8 Cap.

Shelf Life

12 Months

Diameter/Size

25mm – 120mm & as per customer’s requirement.

Packing

25kg boxes, Film Tube

Storage

Store in dry and well-ventilated conditions.

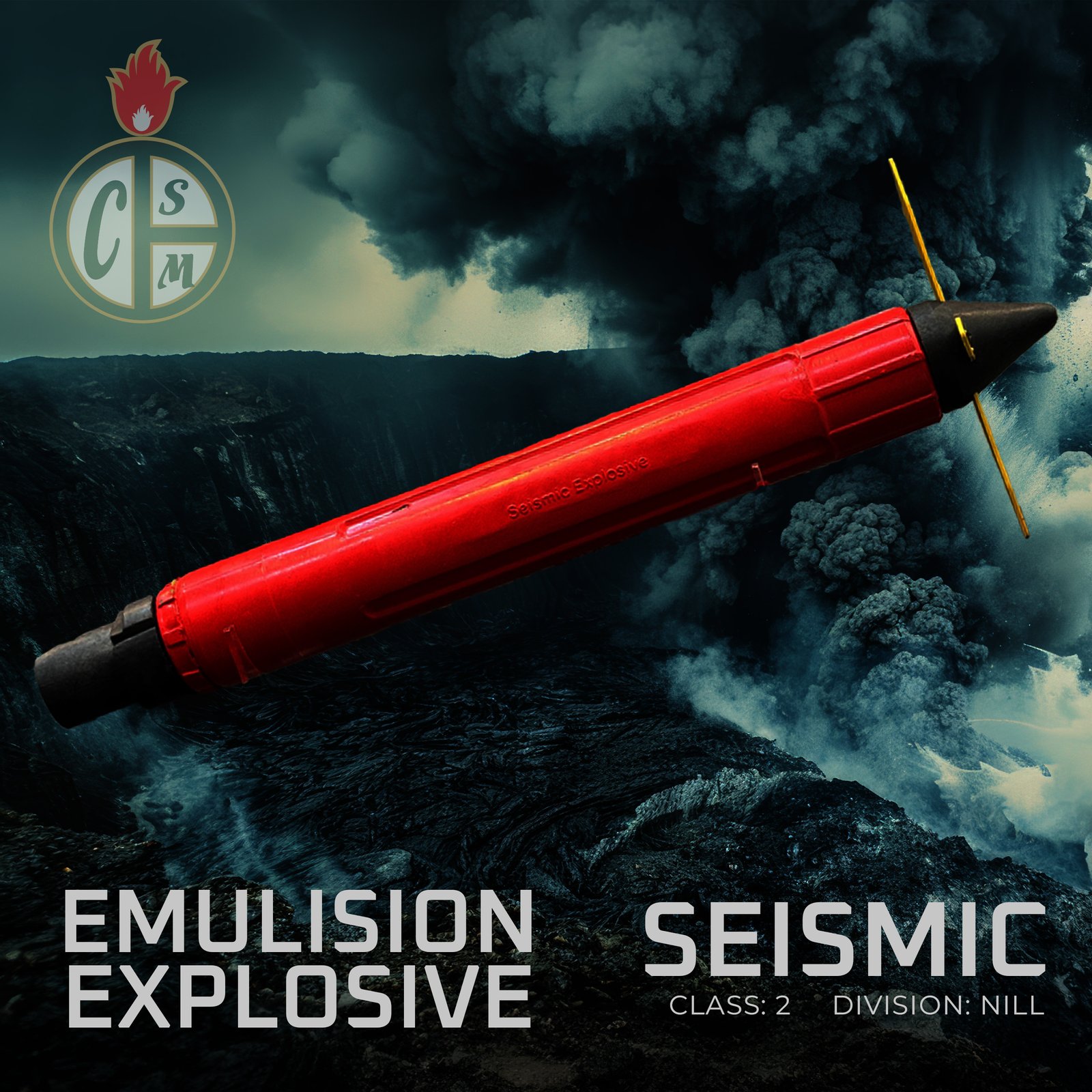

Emulsion Explosive Seismic

Seismic explosive is not a different type of explosive than other emulsions. It is also one of the categories of these explosives with some changes in raw material composition; to enhance its e effective energy, velocity & shattering e effect. It is designed for seismic application & geological survey. Its packing is in rigid plastic capsules with the provision of inter-coupling to prevent the water penetration. Although the seismic explosives have excellent water resistance, but the hydrostatic pressure within the bore whole is too much and sleeping time is approximately four weeks. Emulsion Seismic explosives is also relatively safer in handling, transportation, charging & use than other seismic explosives. It is insensitive to accidental hazards by shock, friction or mechanical impact under normal conditions.

Detail

Specification

Physical Appearance

Beige Color, fine powder form, homogeneous mixture.

Density

1.25 – 1.35 g/cc

Lead Block Expansion

500ml – 550ml

VOD

5500 – 6000 m/s

Oxygen Balance

Near to zero

Water Resistance

Excellent

Gap Sensitivity

100 – 150mm

Initiation Sensitivity

Seismic Detonator No.8 Cap.

Shelf Life

12 Months

Diameter/Size

57mm

Packing

25kg boxes, Rigid Plastic Tube Lid.

Storage

Store in dry and well-ventilated conditions.

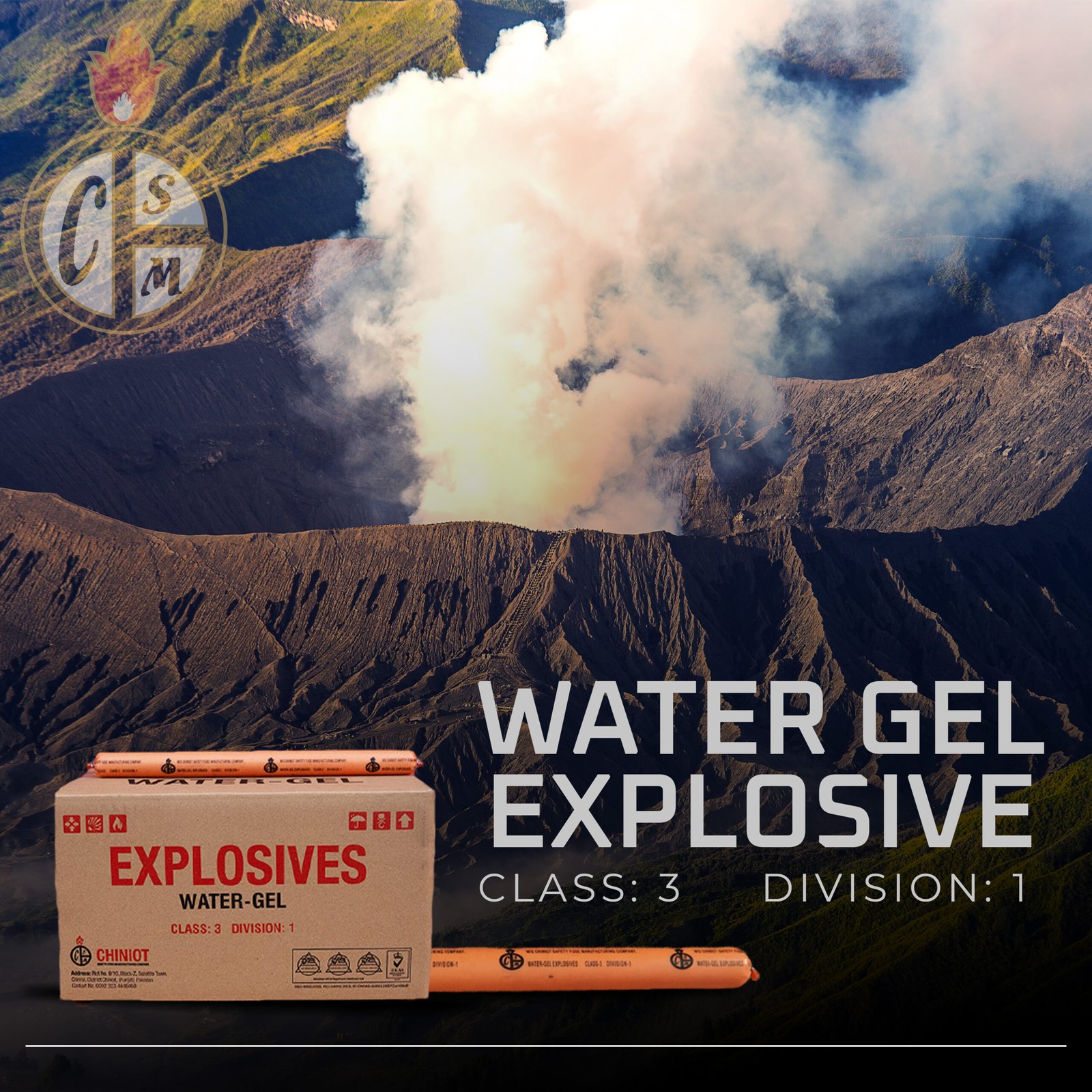

Water Gel Explosive

The ingredients of Water Gel explosives are based on solution of nitrates with 10 to 15% water. It is essentially thickened aqueous solution of oxidizer and fuel. The salt is dispersed, additionally oxidized and then sensitizers are added. Water Gel explosive is in the form of fluid, pumpable and essentially miscible with water. These are in the form of chemically cross-linked material of dough like consistency feature good water resistance and adjustable density. It is suitable for bench blasting, tunnel blasting & all types of mining. Water Gel is very safe explosives for handling, it is only detonate when initiate with no.8 cap.

Detail

Specification

Physical Appearance

Steel Gray Color, fine gel form, homogeneous mixture.

Density

1.2 – 1.35 g/cc

Lead Block Expansion

400ml

VOD

3000 – 5500 m/s

Water Resistance

Fair

Gap Sensitivity

50 – 80mm

Initiation Sensitivity

No.8 Cap.

Shelf Life

6 Months

Diameter/Size

25mm – 120mm & as per customer’s requirement.

Packing

25kg card boxes, Film Tube

Storage

Store in dry and well-ventilated conditions.

Water Gel Explosive Seismic

Seismic Water Gel Explosive is specially design for seismic application and geological surveys. Its efficiency is better than ordinary water gel explosives & velocity of detonation is more then 5500 m/s.
Seismic Water Gel Explosives is specially packed in rigid plastic tube with friction welding to prevent water penetration.

Detail

Specification

Physical Appearance

Brown Color, fine gel form, homogeneous mixture.

Density

1.30 – 1.40 g/cc

Lead Block Expansion

450ml

VOD

5000 – 5500 m/s

Water Resistance

Fair

Gap Sensitivity

50 – 100mm

Initiation Sensitivity

Seismic Detonator No.8 Cap.

Shelf Life

6 Months

Diameter/Size

57mm Rigid Plastic Tube with friction welding.

Packing

25kg card board boxes

Storage

Store in dry and well-ventilated conditions.

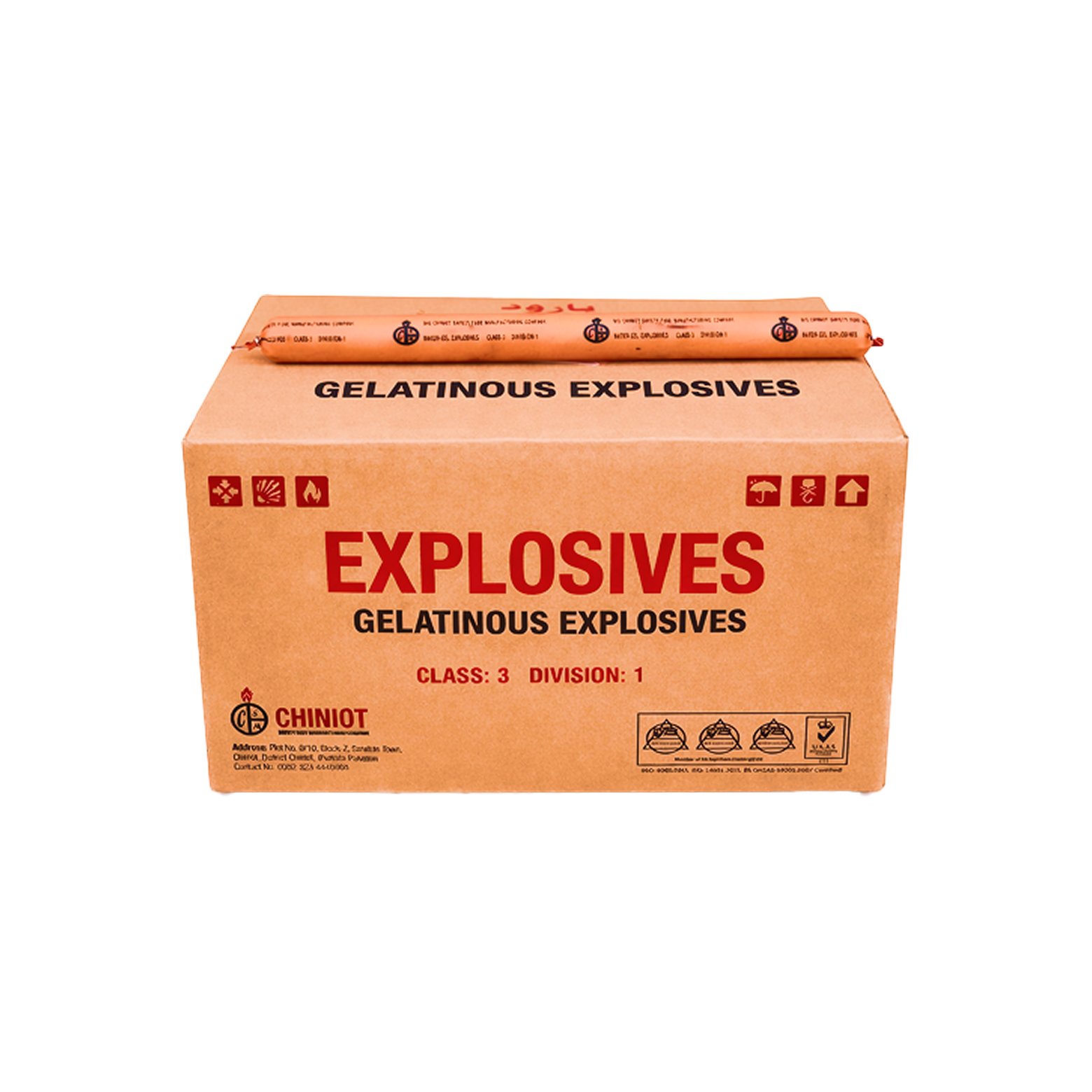

Gelatinous Explosive

Gelatin explosives contain one ingredient that is classified as explosives. It is a soft consistency like dough and is suitable for blasting in soft, medium and especially in hard rocks. It is also recommended for coal mines as permissible explosives. Gelatin Explosive is sensitive to heat, shock, friction & impact. It is a highly brisance explosive and it blasts violently. It’s likely shuttering strength is much more than other commercial explosives. It is a cap sensitive product and is handled through special procedures.

Detail

Specification

Physical Appearance

Brown Color, fine powder form, homogeneous mixture.

Density

1.4 – 1.45 g/cc

Lead Block Expansion

410ml

VOD

4000 – 5800 m/s

Water Resistance

Good

Impact Sensitivity

60cm/kg

Gap Sensitivity

50 – 100mm

Initiation Sensitivity

No.8 Cap.

Shelf Life

12 Months

Diameter/Size

25mm – 120mm & as per customer’s requirement.

Packing

25kg card board boxes, Film Tube

Storage

Store in dry and well-ventilated conditions.

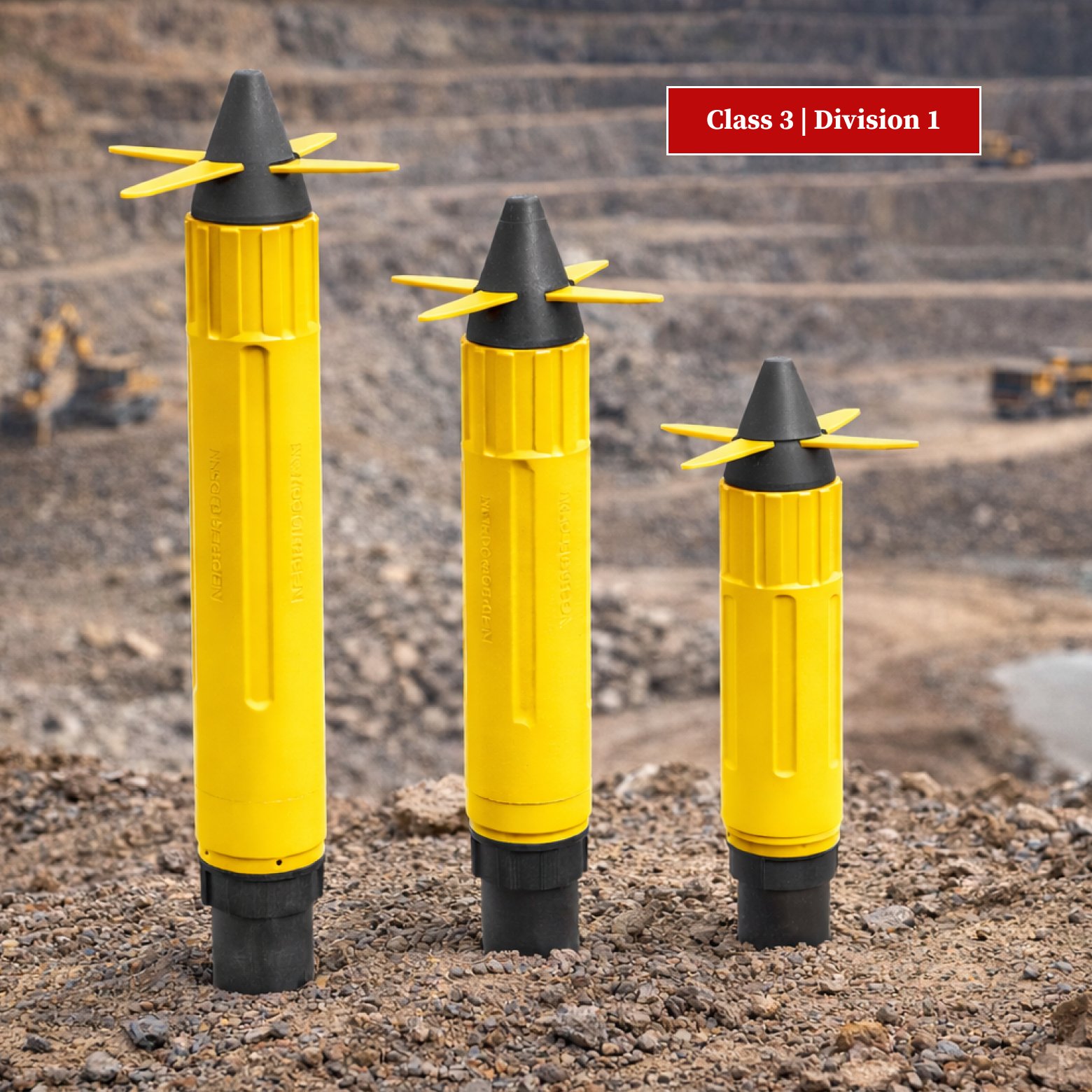

Gelatinous Explosive Seismic

Seismic Gelatinous explosive is more or less like gelatin explosives as explained above, with little bit changes in material composition to enhance the effectiveness for seismic application & geological survey.

Detail

Specification

Physical Appearance

Brown Color, fine powder form, homogeneous mixture.

Density

1.45 – 1.50 g/cc

Lead Block Expansion

410ml

VOD

5500 – 6000 m/s

Water Resistance

Excellent

Impact Sensitivity

50cm/kg

Gap Sensitivity

50 – 100mm

Initiation Sensitivity

Seismic Detonator No.8 Cap.

Shelf Life

12 Months

Diameter/Size

57mm Rigid Plastic Tube with Lid.

Packing

25kg card board boxes

Storage

Store in dry and well-ventilated conditions.

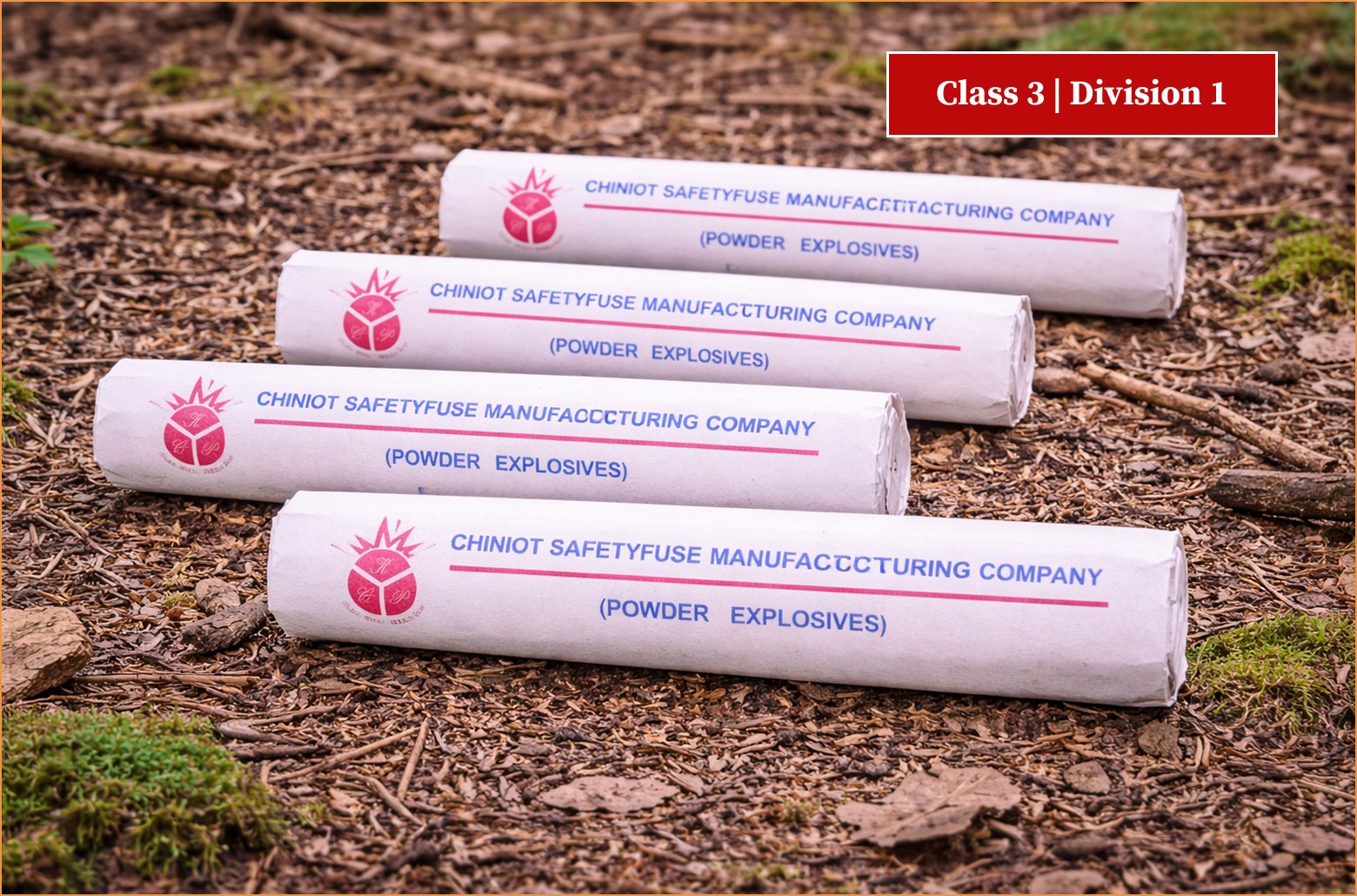

Powder Explosive

Sometimes, medium energy & velocity explosives are required for blasting in medium & soft rock. CSFMC has exclusivity of producing Powder Explosives (without Nitro Glycerin injurious to human health) to meet the blasting requirements of Sand stone, Limestone, Marble, Gypsum, Minerals & metals mining. It is a cap sensitive product and packed in different diameters, sizes & sacks as per requirements of our valuable customers. It is recommended for use in dry blast holes as column charge explosive.

Detail

Specification

Physical Appearance

Brown Color, fine powder form, homogeneous mixture.

Density

1.0 - 1.15 g/cc

Loading Density

1.10 - 1.20 g/cc

Lead Block Expansion

225 - 260ml

VOD

3000 - 3500 m/s

Gap Sensitivity

50mm

Initiation Sensitivity

No.8 Cap.

Shelf Life

12 Months

Diameter/Size

25mm - 120mm & as per valued customer requirement. Also Bulk in 25Kg Sacks.

Packing

25kg boxes/sacks

Storage

Store in dry and well-ventilated conditions.

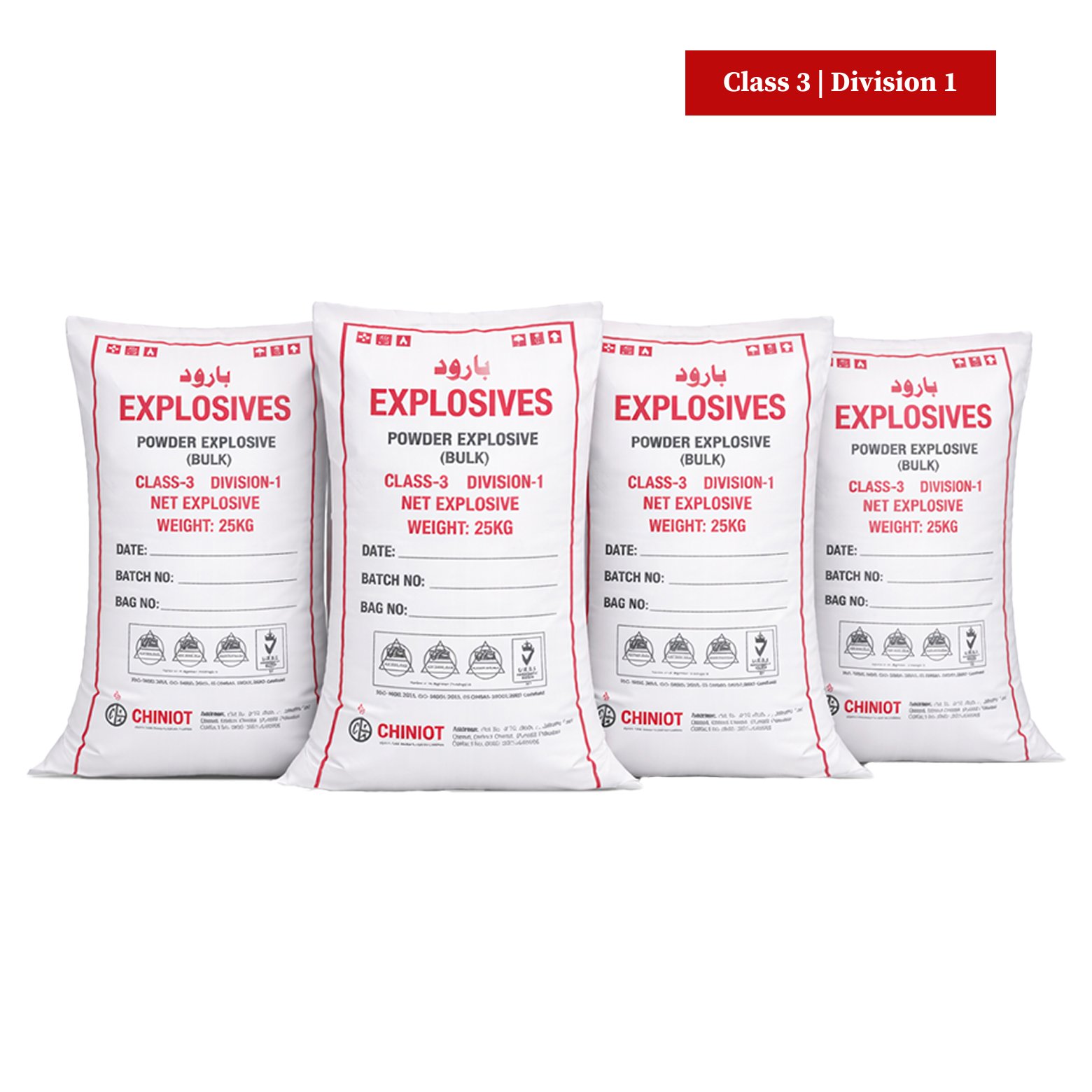

Powder Explosive in Bulk

Detail

Specification

Physical Appearance

Gray Color, fine powder form, homogeneous mixture.

Density

1.0 - 1.15 g/cc

Loading Density

1.10 - 1.20 g/cc

Lead Block Expansion

225 - 260ml

VOD

3000 - 3500 m/s

Gap Sensitivity

50mm

Initiation Sensitivity

No.8 Cap.

Shelf Life

12 Months

Diameter/Size

25mm - 120mm & as per valued customer requirement. Also Bulk in 25Kg Sacks.

Packing

25kg boxes/sacks

Storage

Store in dry and well-ventilated conditions.

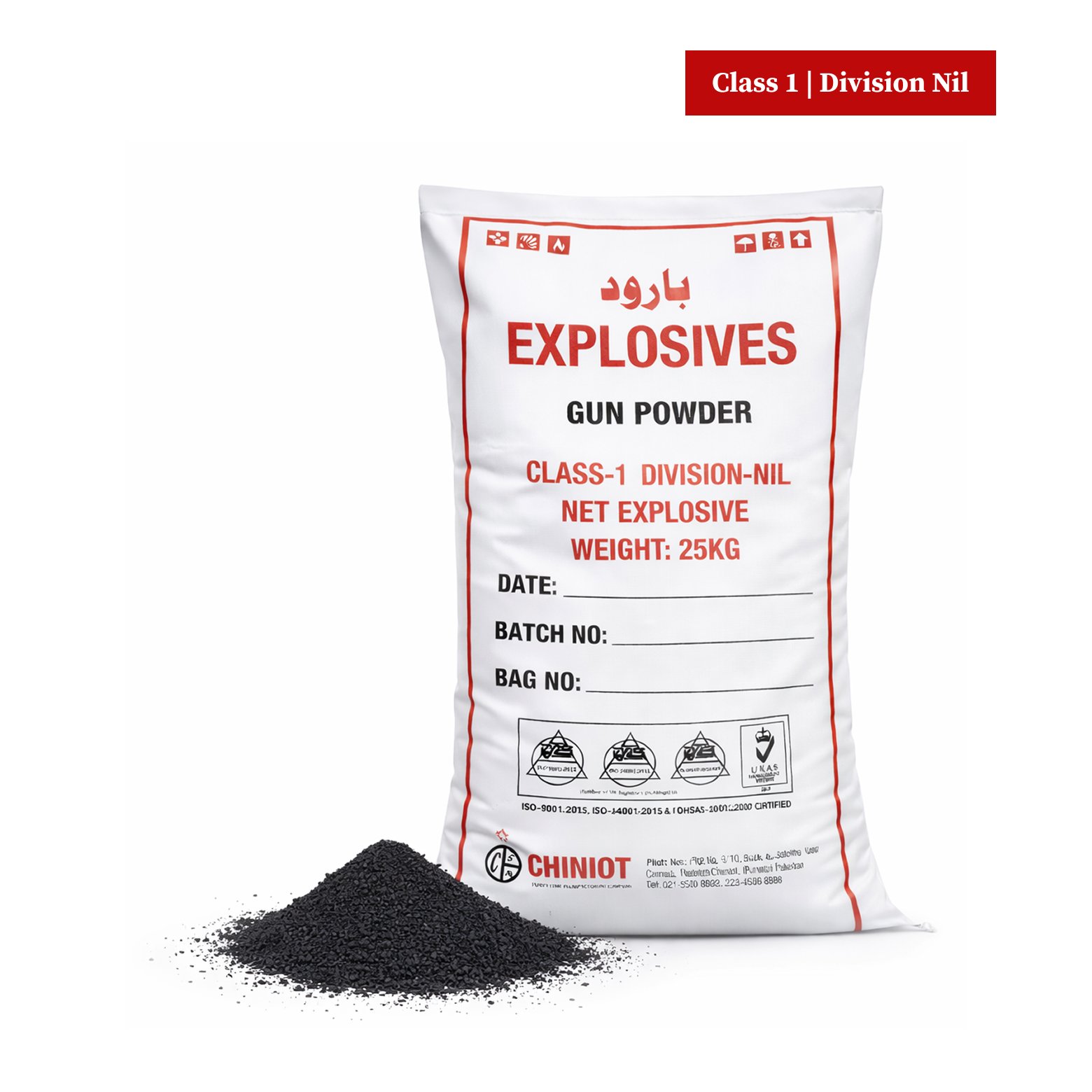

Gun Powder

The Gun Powder/Black powder is the oldest known explosive since 12 century. It is a mechanical mixture of ingredients and pressed granular. It is specially designed for the manufacturing of Safety Fuse. The Gun Powder is classified as low explosive which produces rather fast deflagration than detonation. It is sensitive to impact, friction & spark and is used for manufacturing of Safety Fuse, Pyrotechnics, priming charge & delay compositions for smokeless powder.

Detail

Specification

Physical Appearance

Black color Granular form

Density

0.80 - 0.85 g/cc

Moisture Content

0.6 - 1.0%

Burning Rate

90 - 130 s/m

Flashover Sensitivity

25mm Min.

Packing

25kg sack & Plastic Container.

Storage

Store in dry and well-ventilated conditions.

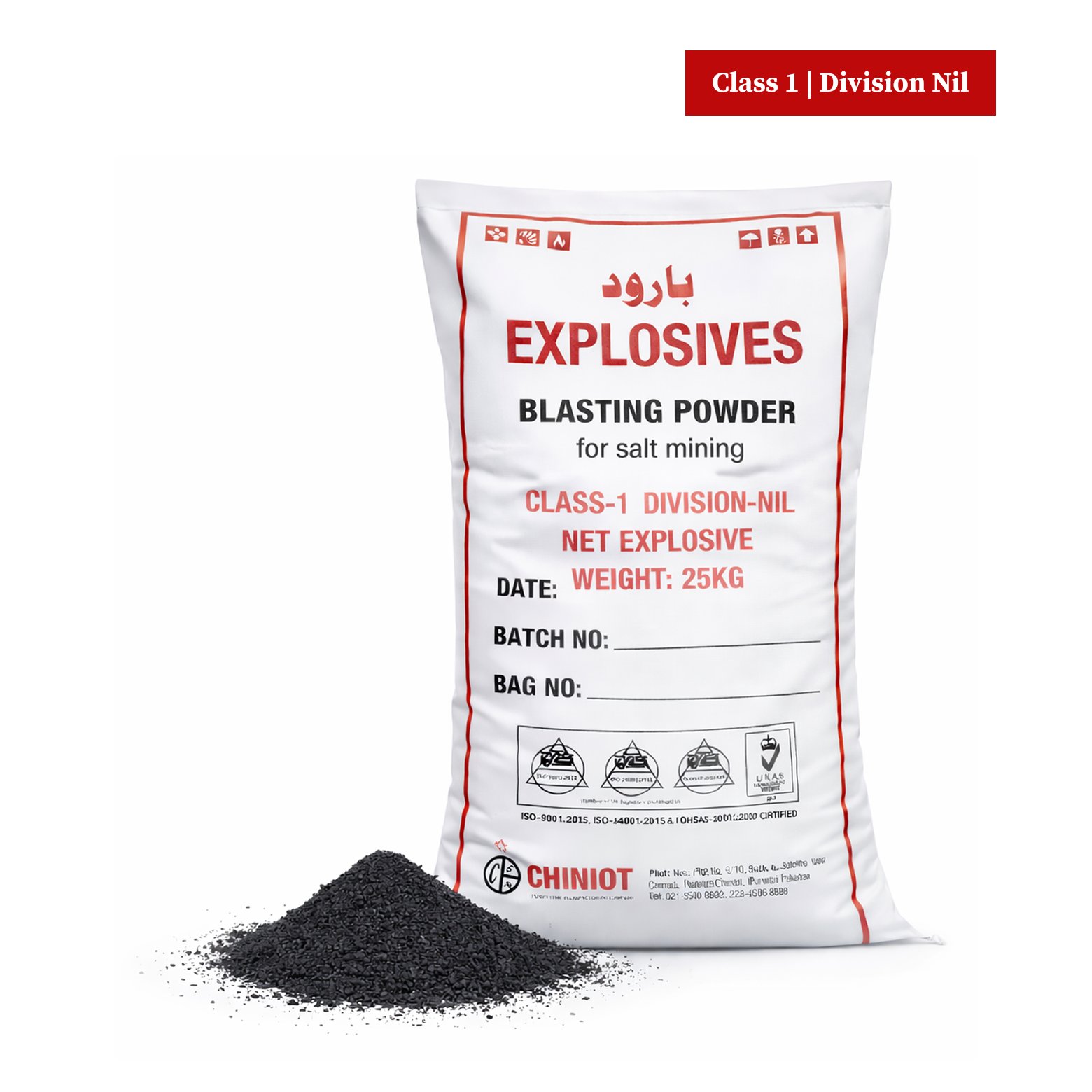

Blasting Powder for Salt Mining

It is designed especially for application of salt, Gypsum & soft rock mining purposes. It is a ash sensitive product and directly ignited by Safety Fuse. It is also very sensitive to impact, friction & heat. Most commonly it is used in the form of different types of cartridges.

Detail

Specification

Physical Appearance

Garish Black color Powder form

Density

0.85 - 1.0 g/cc

Moisture Content

Up to 5%

VOD

800 - 1000 m/s

Explosion Temperature

2500 - 3000Co

Gassing Volume

280 - 300 liter/kg

Ignition temperature

200Co

Impact Sensitivity

70 - 100 cm/2kg

Packing

25kg sack & Plastic Container.

Storage

Store in dry and well-ventilated conditions.

Accessories

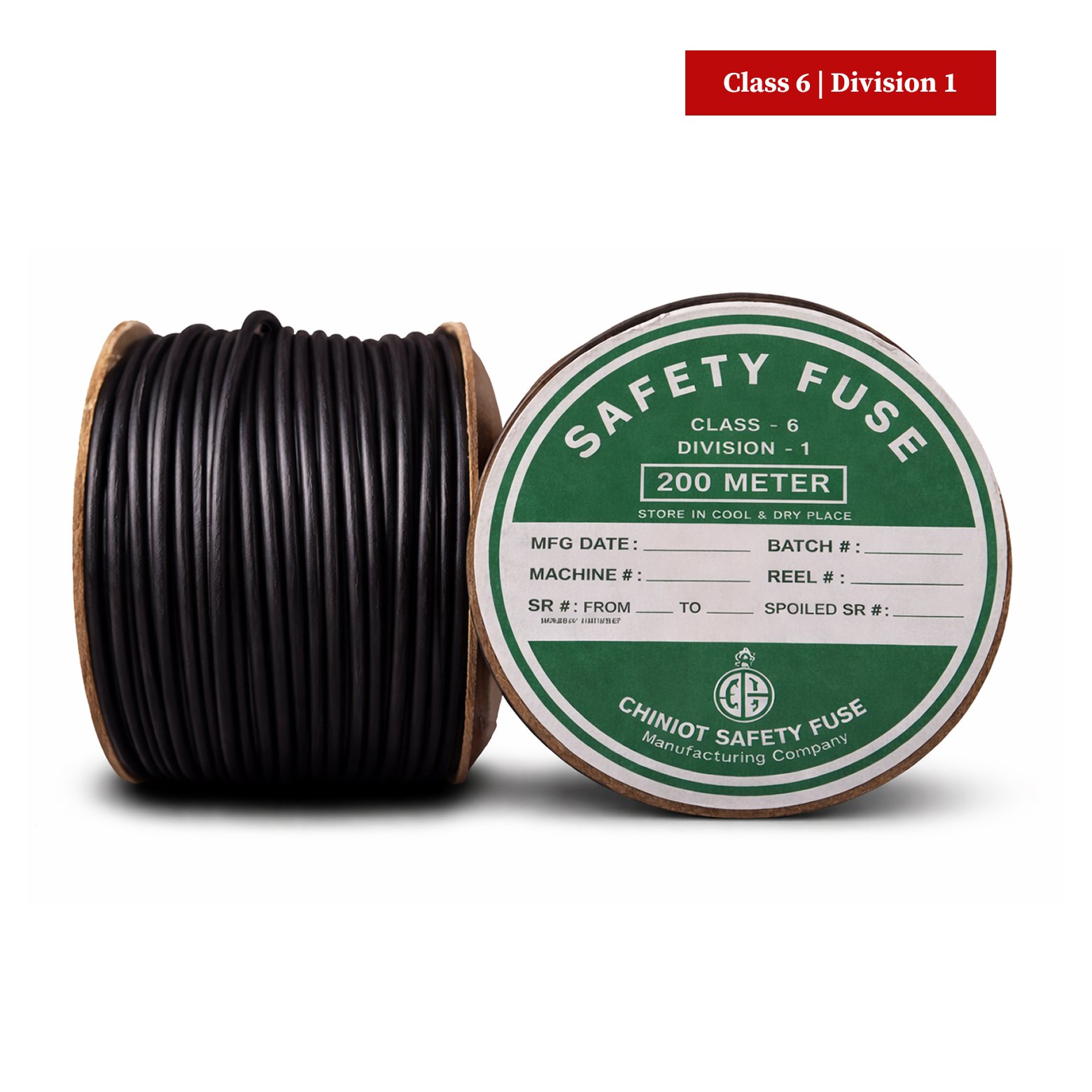

Safety Fuse PVC

Safety Fuse is a pliable & flexible fuse cord, inner core contains special grade black powder and covered with textile yarns. For water proofing fuse is insolated with PVC or Bitumen. PVC coating of safety fuse was pioneered by the owner of the company, Mr. Ch Muhammad Yamin in 1991. The same was later replicated by other commercial explosive manufacturing companies in the country. Safety Fuse burns slowly for transmitting re to a detonator.

Detail

Specification

Physical Appearance

Black color pliable, flexible, uniform coated

Outer Diameter

5.0 + 0.2mm

Black Powder Filling

5.0 - 6.0 g/m

Flashover Sensitivity

25.0mm Min.

Aging Effect

There is no any significant effect in burning time when exposed the safety fuse @ 60 Co for 144 hours.

Shelf Life

12 months.

Packing

800 - 1000 meters per box.

Storage

Keep in dry and well-ventilated conditions at ambient temperature

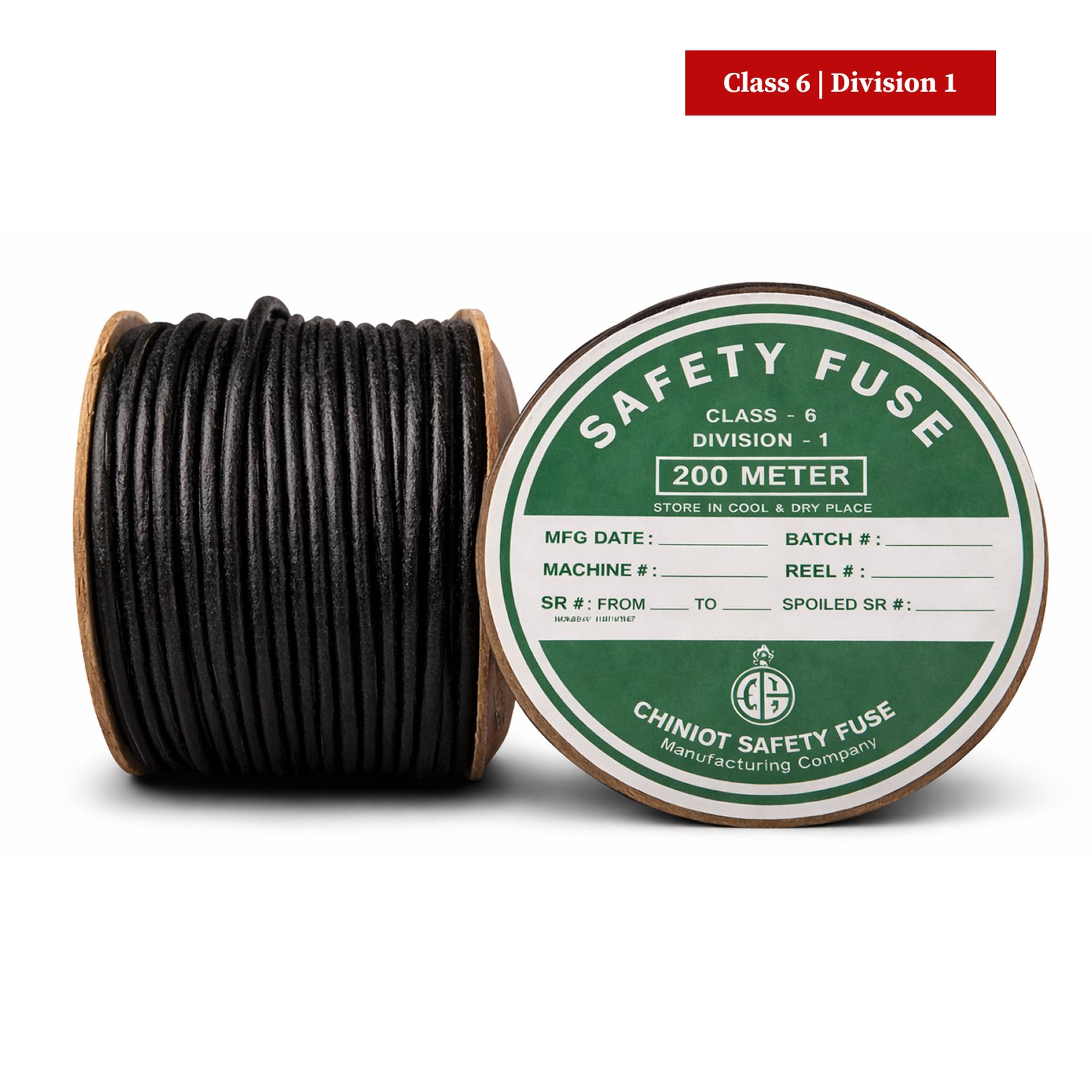

Safety Fuse Bitumen

Detail

Specification

Physical Appearance

Black color pliable, flexible, uniform coated

Outer Diameter

5.0 + 0.2mm

Black Powder Filling

5.0 - 6.0 g/m

Flashover Sensitivity

25.0mm Min.

Aging Effect

There is no any significant effect in burning time when exposed the safety fuse @ 60 Co for 144 hours.

Shelf Life

12 months.

Packing

800 - 1000 meters per box.

Storage

Keep in dry and well-ventilated conditions at ambient temperature

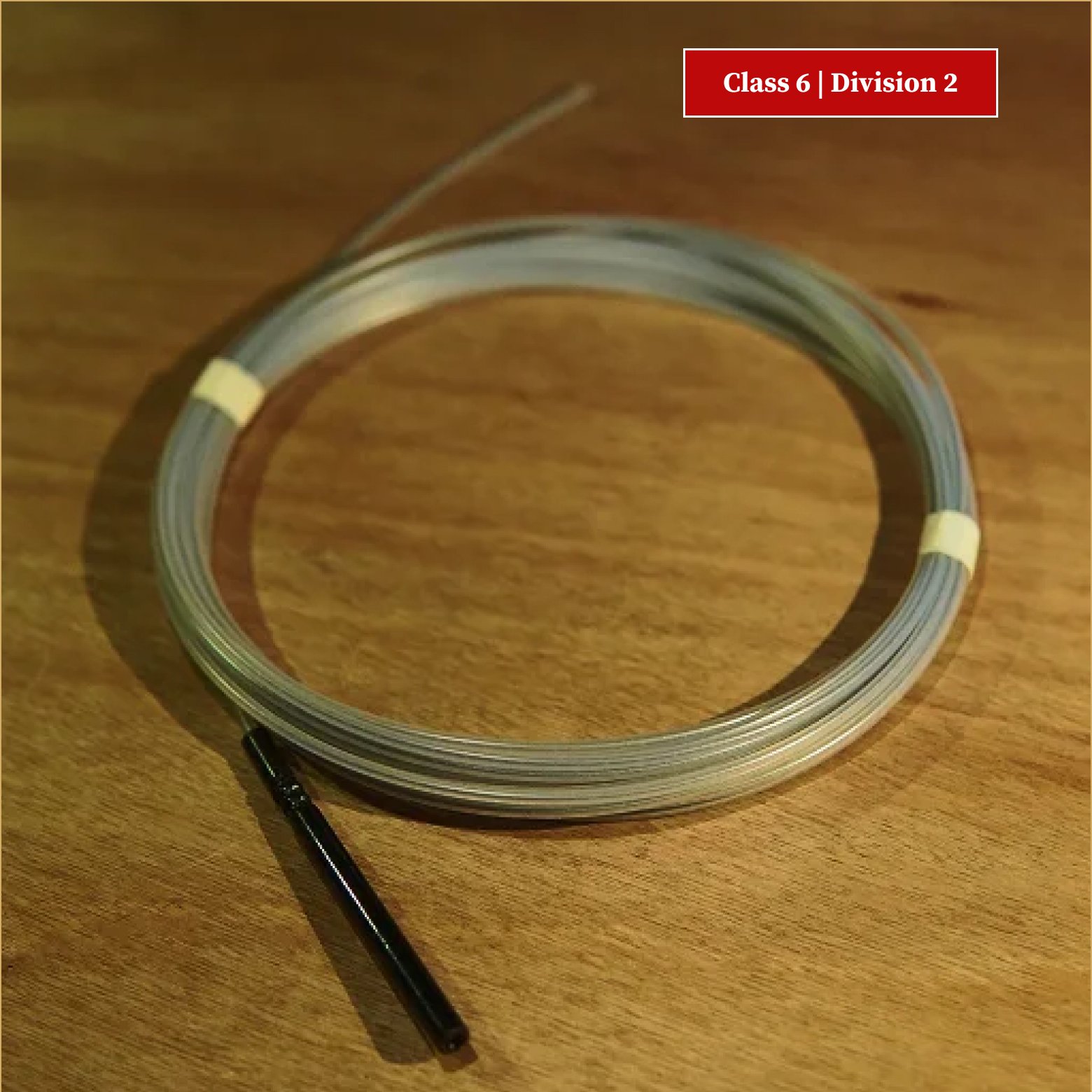

Shock Tube

The signal shock tube consists of narrow plastic tube coated inside surface with a very thin layer of high explosives. Shock tube can be initiated by plain, electric, seismic detonators, detonating cord & mechanical shot shell starter device. In resulting shock ways travels at high speed (2000 m/s) through the tube towards detonator connected at the other end. The shock waves produce sufficient energy to initiate plain detonator.

Detail

Specification

Appearance/Water Resistance

Transparent Surlien hollow tube

Tensile Strength

25kg at 20 Co

Elongation Strength

3 times more than original

Velocity of shock Wave

2000 - 2100 m/sec

Max. Hydrostatic pressure

3 bar for 7 days

Initiation Sensitivity

No.8 Cap/Detonating Cord

Shelf life

12 Months

Packing

25kg card board boxes, Film Tube

Storage

Store in dry and well-ventilated conditions.

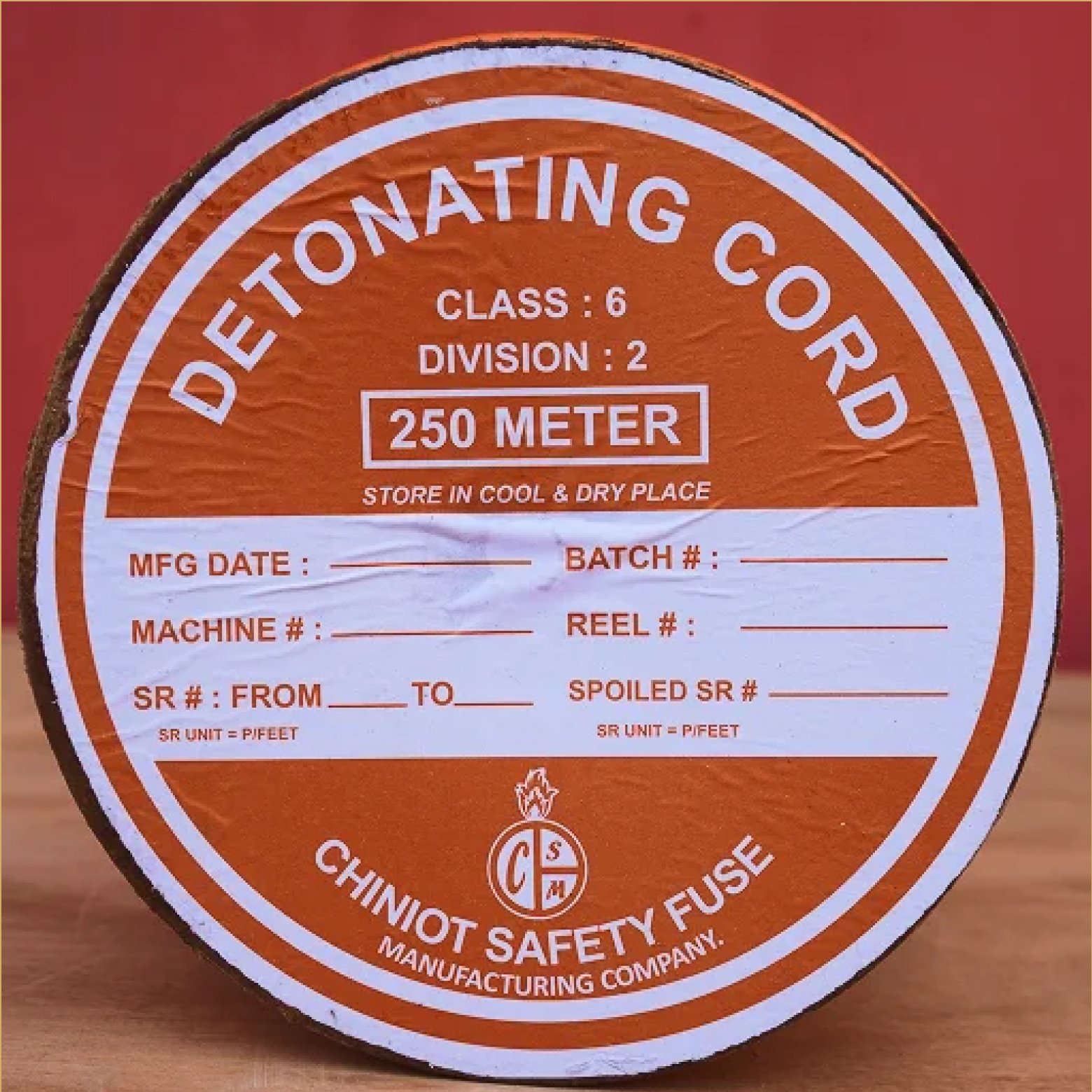

Detonating Cord

Detonating cord consists of PETN core covered by woven tube of polythene tape and cotton threads protected by an outer insulation of polyvinyl chloride. The weight of cord is approximately 10 g/m and + outer diameter is about 5.0 5.5mm. The Detonating Cord is a strong, flexible and linear explosive which consists of a continuous core of high explosives PETN. The Detonating Cord is critical in transmitting energy for initiation of explosion. It is a cap sensitive product having the ability to initiate all cap sensitive explosives & primers.

Detail

Specification

Physical Appearance

Orange color pliable, flexible, uniform PVC coated.

Outer Diameter

5.0 - 5.5mm.

Explosives Charge

9 - 11g/m.

Tensile Strength

60kg/6 inches

VOD

6000 - 7000 M/Sec

Sensitivity

No.8 Cap.

Aging Effect

There is no any significant effect in detonation when exposed the Cord with heat & cold atmosphere.

Detonation Test

Completely detonate with minimum 20 branches.

Water Immersion Test

Cord detonate after immersion in water at 03 meter depth for 24 hours.

Shelf life

12 Months

Packing

1000 meters per box.

Storage

Keep in dry and well-ventilated conditions at ambient temperature.

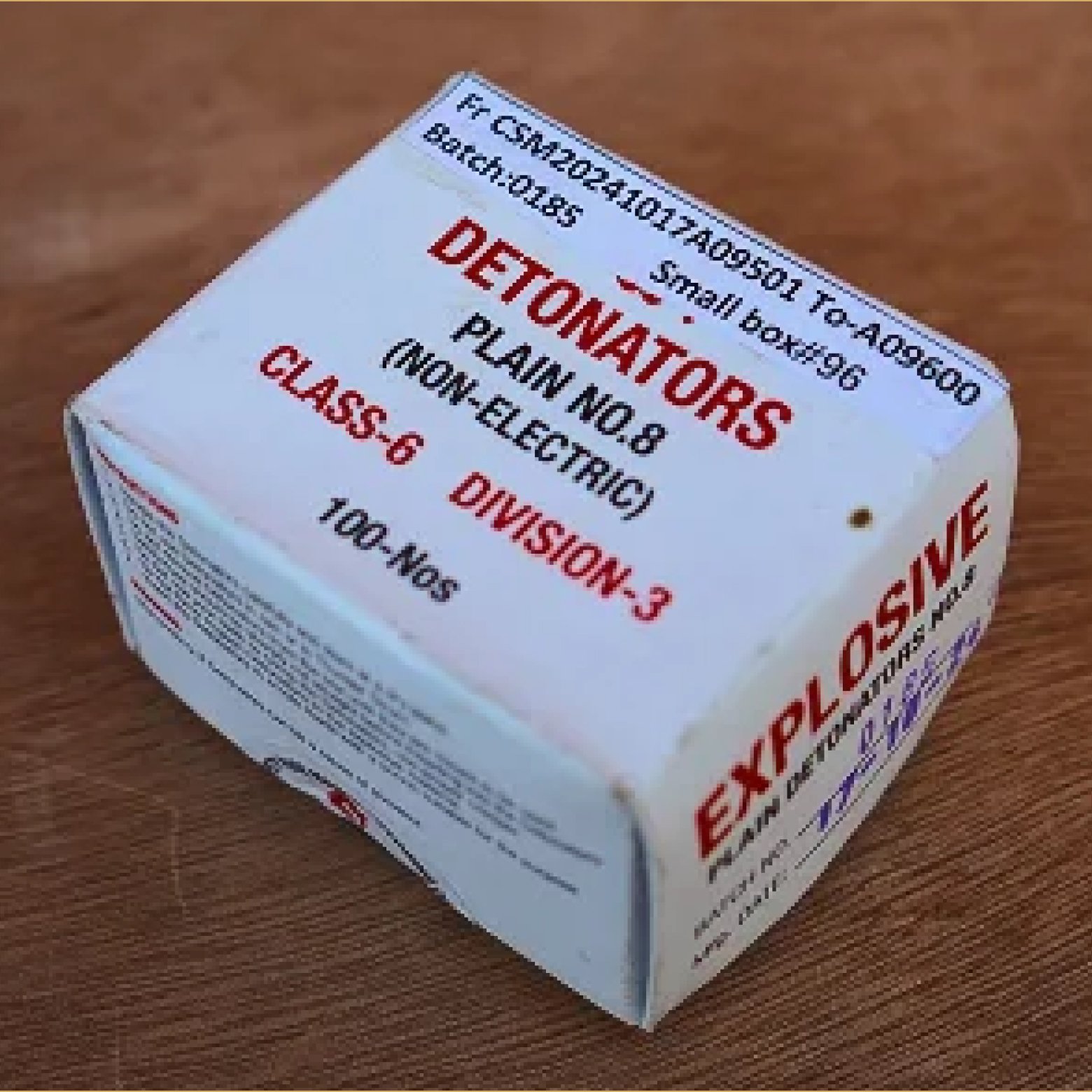

Explosive Plain Detonators No.8

It is a compact mechanical device which contains PETN as primary base charge. It is high power detonator and initiated with Safety Fuse. It can reliably initiate all type of cap sensitive explosive and primers for controlled blasting & used for blasting work in well mining, open pit, digging tunnels, road construction, building water conservancy project etc.

Detail

Specification

Physical Appearance

Aluminum Capsule

Diameter

6.95mm

Tube Length

50mm

Sensitivity

Safety Fuse Flame

Initiation Power

No.8

Performance

99%

Packing

100 no's in box and 50 boxes in one card board box

Shelf Life

12 Months

Storage

Store in dry and well-ventilated conditions.

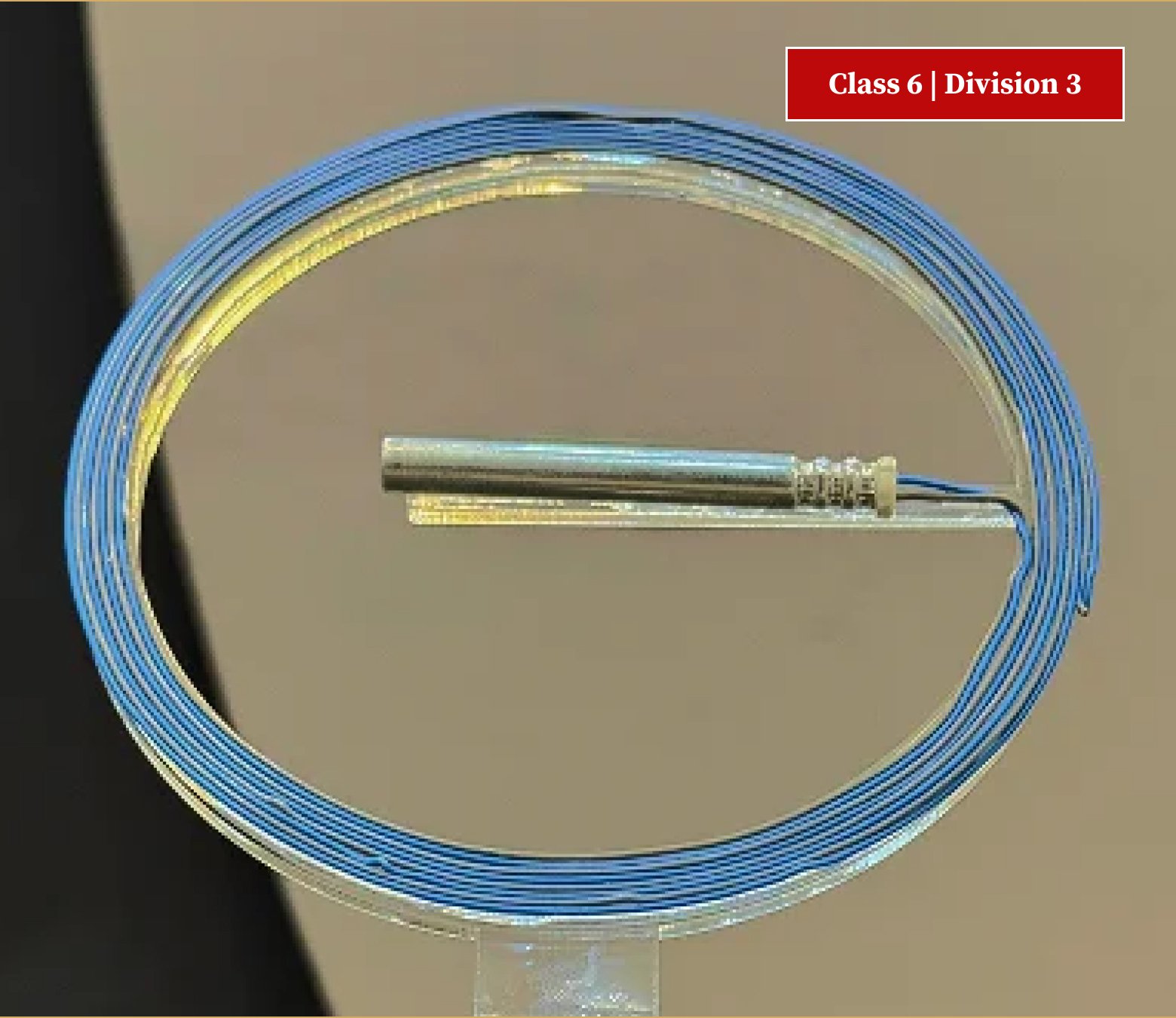

Electric Detonators No.8

It is high power detonator and initiated by an electric impulse. It can reliably initiate all explosives & detonating cords applicable for blasting work in well mining or in open pit, digging tunnels, road construction, building water conservancy project etc. Electric detonators are widely used to initiate blast sequence but are rarely now used inside the blast hole themselves except seismic prospecting. Electric energy is introduced into the detonator from out source via a primary circuit wire through detonator leads.

Detail

Specification

Physical Appearance

Aluminum Capsule along connected 2 leg wires

Diameter/Tube Length

6.95mm/64 - 70mm

Leg Wire Length

3,5,7,& 10 meter (as per requirement)

Sensitivity

Electric Impuls

Initiation Power

No.8

Resistance of leg wire

0.05 - 0.055ohm

Resistance of fuse head

1 - 1.2 ohm

Safe current

0.50-amp

Firing Current

1-amp

Friction sensitivity

2 kg

Impact sensitivity

20cm/1-kg

Performance

99%

Packing

200 no's in one card board box

Shelf Life

12 Months

Storage

Store in dry and well-ventilated conditions.

Electric Delay Detonators

The short interval delay detonator has been widely used for blasting. The composition of delay detonator is the same as electric or plain detonator, but the delay element is placed in between the fuse head and primary charge. It is vitiated by an electric impulse. Millie second and half second delay electric detonators are mostly used for quarrying, open pit and breaching projects.

Detail

Specification

Physical Appearance

Aluminum Capsule along connected 2 leg wires

Diameter

6.95mm

Tube Length

60 - 75mm

Leg Wire Length

3,5,7,& 10 meter (as per requirement)

Sensitivity

Electric Impuls

Initiation Power

No.8

Resistance of leg wire

0.05 - 0.055ohm

Resistance of fuse head

1 - 1.2 ohm

Safe current

0.50 amp

Firing Current

1 amp

Friction sensitivity

2 kg

Impact sensitivity

20cm/1 kg

Performance

99%

Packing

30 no's/small box, 300 no's/large box

Shelf Life

12 Months

Storage

Store in dry and well-ventilated conditions.

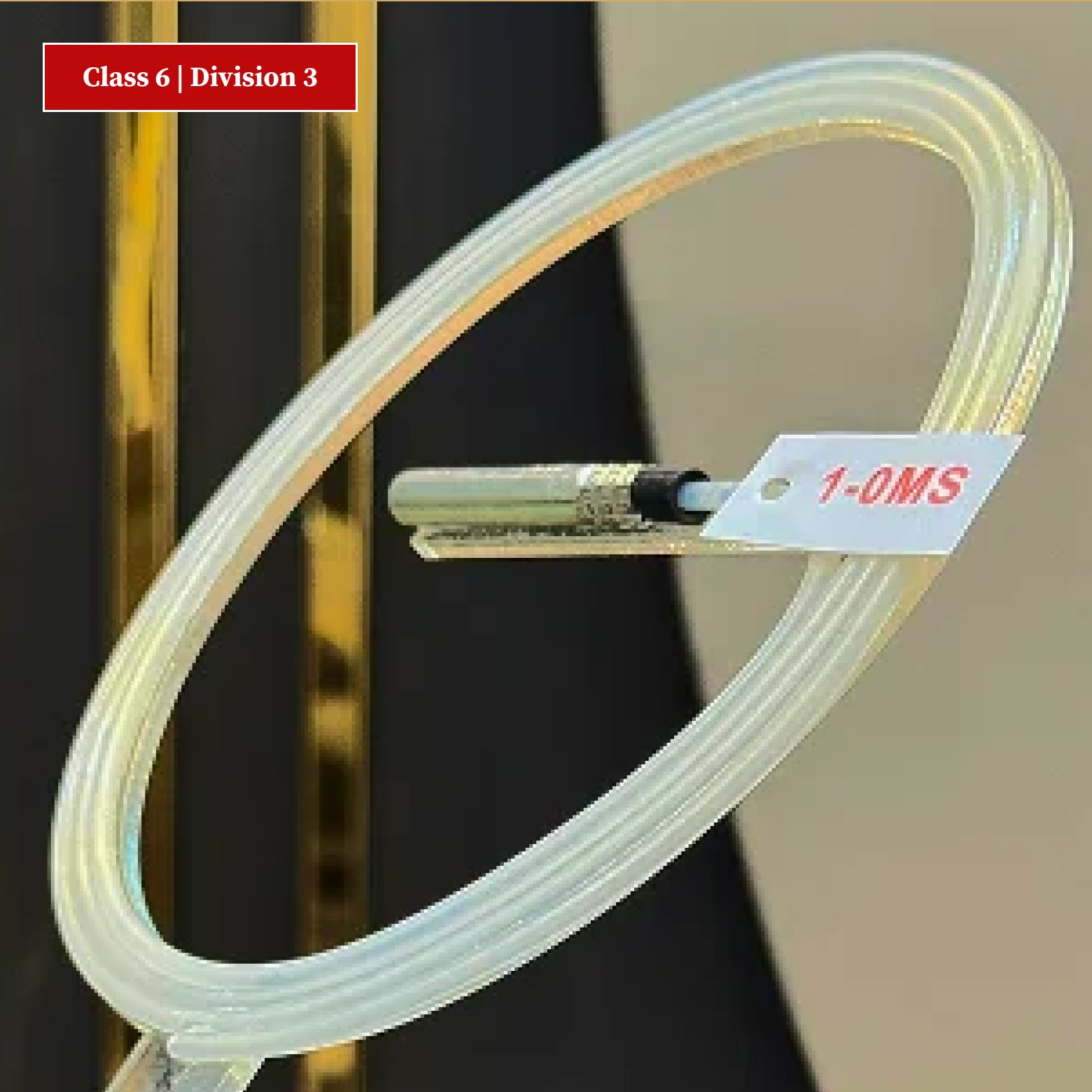

Shock Tube Detonators

It is a compact mechanical device which contains primary charge & PETN as a base charge. It is high power detonator and initiated with Shock Tube. It can reliably initiate all type of cap sensitive explosive and primers for controlled blasting & used for blasting work in well mining, open pit, digging tunnels, road construction, building water conservancy project etc.

Detail

Specification

Physical Appearance

Aluminum Capsule Crimped with shock tube

Diameter

6.95mm

Tube Length

60 - 75mm

Sensitivity

Shock tube flame

Initiation Power

No.8

Length of shock tube

3, 5, 7 & 10 meters (as per requirement)

Performance

99%

Packing

30 no's/small box, 300 no's/large box

Shelf Life

12 Months

Storage

Store in dry and well-ventilated conditions.

Seismic Detonators

The seismic detonator is for almost instantaneous time break which reacts with in half millie second after receiving the electric impulse. Seismic detonator is almost same as electric detonator but the primary charge is greater than ordinary detonator. Water resistance of this device more efficient and reliable.

Detail

Specification

Physical Appearance

Aluminum Capsule along 2 leg wires

Diameter

6.95mm

Tube Length

60mm

Leg Wire Length

(as per requirement)

Sensitivity

Electric Inputs

Initiation Power

No.8

Resistance of leg wire

0.05 - 0.055ohm

Resistance of fuse head

1 - 1.2 ohm

Safe current

0.50-amp

Firing Current

1-amp

Friction sensitivity

2 kg

Impact sensitivity

20cm/1-kg

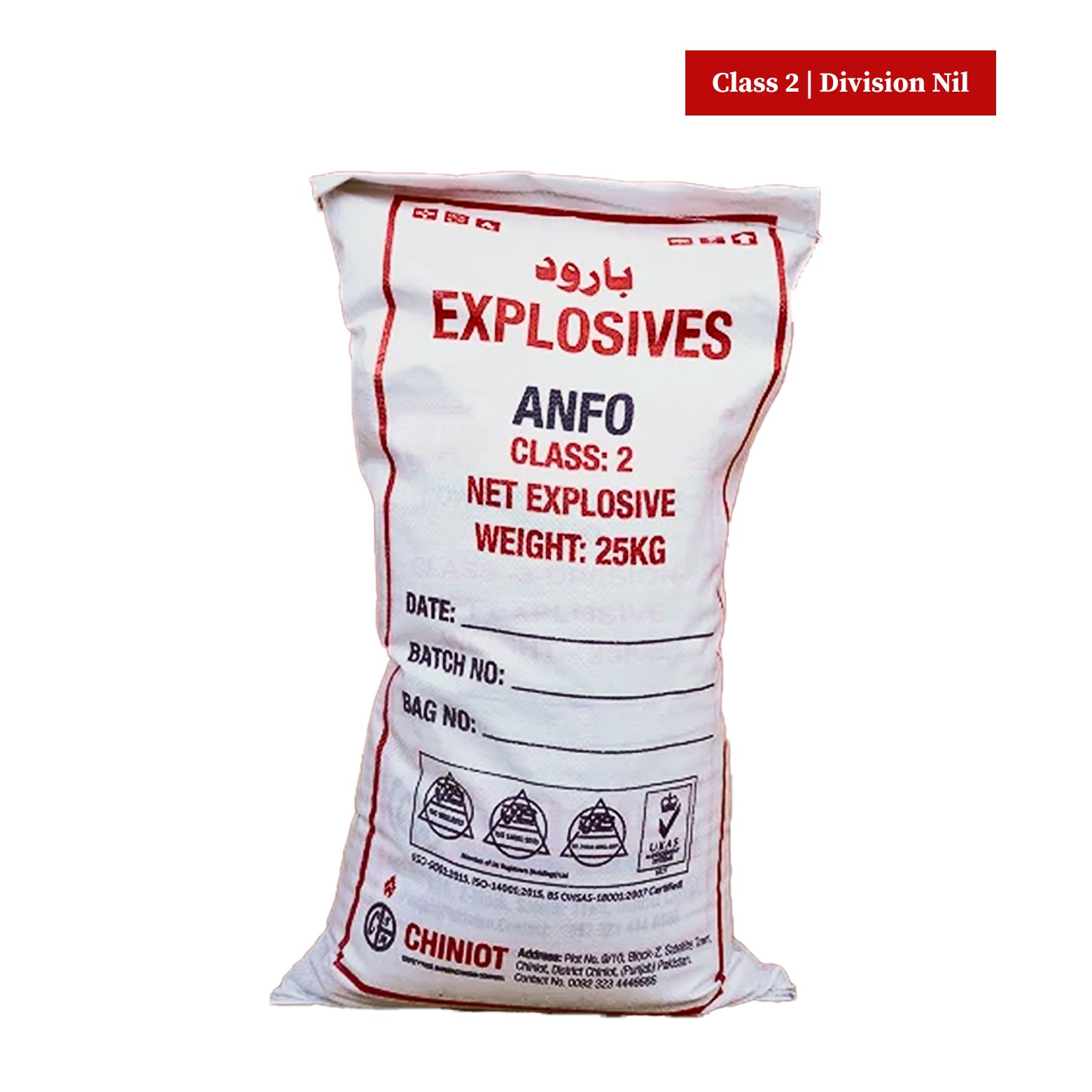

ANFO

It is a mechanical mixture of ammonium nitrate and fuel oil and a low-density explosive of relatively high weight strength. The CSFMC is producing two types of ANFO, one is cap sensitive (exclusively produced by CSFMC and the other is booster sensitive. The cap sensitive product is specially designed for rock blasting to eliminate the risk of mis ring.

Detail

Specification

Appearance

O-white & light Gray Color in the form of prills/powder

Density

0.8 0.90 g/cm3
1.0 1.10 g/cm3

VOD

2000 - 3000 meter/sec.

Sensitivity

Booster & Cap No. 8 sensitive.

Shelf Life

6 Months.

Gas Volume

880 Lit./Kg

Packing

25kg sacks & polyethene tube.

Storage

Store in dry and well-ventilated conditions.

PETN

PETN is a white crystalline substance which melts at 140 141c. PETN usually forms in hexagonal shape crystals, which pours easily. PETN is practically insoluble in water but completely soluble in Acetone and Ethyl Acetate/ alcohol and completely non-hygroscopic. The chemical stability of PETN is very high and exceeds that of all other nitric acid esters. The symmetrical structure of the PETN distinguishes it from the rest of its family members. One excellent chemical property of the PETN that, it cannot be destroyed/ chemically decomposed. PETN is used commercially for manufacturing of detonating cord and all types of detonator as a base charge.

Detail

Specification

Physical Appearance

Brown Color, ne powder form, homogeneous mixture.

Density

1.30 - 1.40g/cc

Lead Block Expansion

450ml

VOD

5000 - 5500 m/s

Water Resistance

Fair

Gap Sensitivity

50 - 100mm

Initiation Sensitivity

Detonator No.8 Cap.

Shelf Life

6 Months.

Packing

25kg card board container.

Storage

Store in dry and well-ventilated conditions.

Safety Fuse

Detail

Specification

Physical Appearance

Black color pliable, flexible, uniform coated

Outer Diameter

5.0 + 0.2mm

Black Powder Filling

5.0 - 6.0 g/m

Flashover Sensitivity

25.0mm Min.

Aging Effect

There is no any significant effect in burning time when exposed the safety fuse @ 60 Co for 144 hours.

Shelf Life

12 Months.

Packing

800 - 1000 meters per box.

Storage

Keep in dry and well-ventilated conditions at ambient temperature

Phone:

Mail:

CSFMC Products

Detail

Specification

Physical Appearance

Beige Color, fine powder form, homogeneous mixture.

Density

1.16 – 1.25 g/cc

Lead Block Expansion

300ml

VOD

3500 - 5500 m/s

Water Resistance

Excellent

Gap Sensitivity

50 – 100mm

Initiation Sensitivity

No.8 Cap.

Shelf Life

12 Months

Diameter/Size

25mm – 120mm & as per customer’s requirement.

Packing

25kg boxes, Film Tube

Storage

Store in dry and well-ventilated conditions.

Detail

Specification

Physical Appearance

Beige Color, fine powder form, homogeneous mixture.

Density

1.25 – 1.35 g/cc

Lead Block Expansion

500ml – 550ml

VOD

5500 – 6000 m/s

Oxygen Balance

Near to zero

Water Resistance

Excellent

Gap Sensitivity

100 – 150mm

Initiation Sensitivity

Seismic Detonator No.8 Cap.

Shelf Life

12 Months

Diameter/Size

57mm

Packing

25kg boxes, Rigid Plastic Tube Lid.

Storage

Store in dry and well-ventilated conditions.

Detail

Specification

Physical Appearance

Steel Gray Color, fine gel form, homogeneous mixture.

Density

1.2 – 1.35 g/cc

Lead Block Expansion

400ml

VOD

3000 – 5500 m/s

Water Resistance

Fair

Gap Sensitivity

50 – 80mm

Initiation Sensitivity

No.8 Cap.

Shelf Life

6 Months

Diameter/Size

25mm – 120mm & as per customer’s requirement.

Packing

25kg card boxes, Film Tube

Storage

Store in dry and well-ventilated conditions.

Detail

Specification

Physical Appearance
